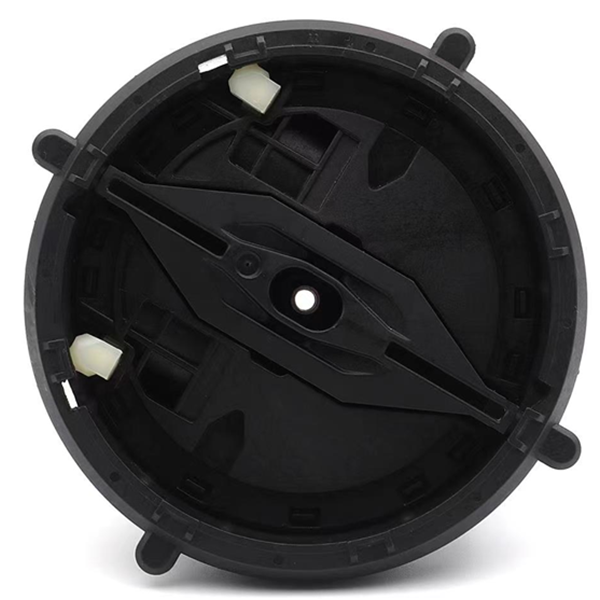

A Plug Type Electric Mirror Actuator for Passenger Cars(12v)
MA-03
Quantity:
Product Description
| Part Name | A Plug type Electric Mirror Actuator for passenger cars(12v) |
| Specification | technical standard |
| Operating Voltage Range | 9.0VDC～16.5VDC |
| Operating Voltage | DC 12±2V |
| Operating Current | ≤60 mA |
| Stall Current | ≤125 mA |
| Travel Speed | 2.5～4.0°/s |
| Operating Temperature Range | -40℃～80℃ |
| Operation Endurance | 23±2℃ 8000 times 80±2℃ 2500 times -40±2℃ 2500 times 40±2℃ 2000 times 98% humidity total≦15000 times |
| Manual Set Torque | 0.8～2.2 N.m |
| Electric Set Torque | 0.25～1.1N.m |
| Adjustment Angle | ≥20° |
| Noise Level | ≤60dB (Distance：200mm) |
| Free Play | ≤0.4° |
| Mirror Glass Weight Support | 320g |
Product Display
Company Profile
Wanhe offers one step solution for the automotive rear view mirror project.Our capabilities include engineering, testing and manufacture of automotive interior and exterior mirrors. We are able to provide our customers various products as rear view mirror、inner view mirror、convex mirror、mirror actuator、mirror heater、car switch、power folder and auto mirror mould.
We supply products to many countries in Asia, South America, and the Middle East.Through our customers, we are proud to supply our products to Volkswagen, GM, Mekra-Lang, BYD, Hainan Mazda and etc. Our factory has certified via ISO TS 16949:2002 since 2008.
We can offer you:
- Full assembly set design
- Moulds for all plastic parts and metal parts.
- Auto mirror glass
- Manual Type Actuator (manual glass adjustment)
- Electric Type Actuator (electric glass adjustment)
- Glass heater
Packing & Delivery
FAQ
Q1：What is the advantage about your company?
A1：We have a professional team,which can well ensure the quality of product and service.
Q2：The size can be customized?
A2：Yes, we can customize according to your needs.
Q3：What can we provide?
A3：We can provide a one-step solution for the automotive rear view mirror project.
Q4：Can I get a sample to check the quality of product?
A4：Yes, we can send you samples to check the quality.
Q5: Whats' your payment terms?
A5: TT，L/C，Paypal，Western Union or others accoridng to specific situation.
