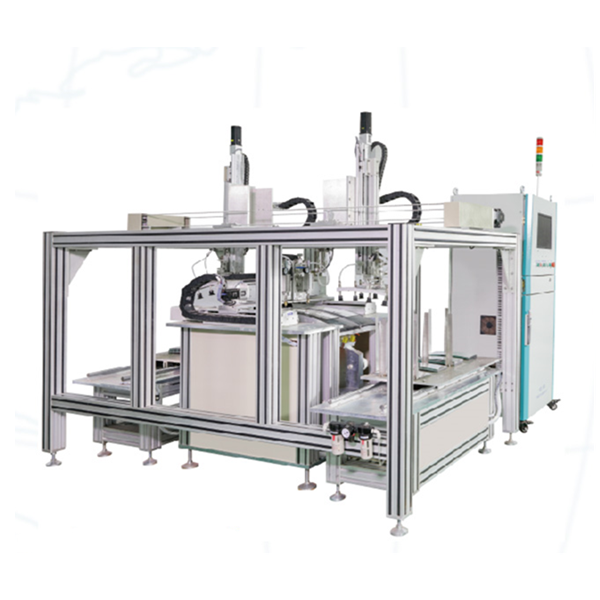

Fully Automatic CNC Curved Glass Cutting Machine
GM-03
Fully automatic CNC curved glass cutting machine
Quantity:
Product Description
Brief introduction
This device is a special CNC cutting machine for the shape cutting of curved glass. It is mainly used in automobile and motorcycle rear-view mirror glass cutting.This machine adopts computer control,special CNC cutting software, two groups of cutting tools.The work process is completely automatic, can cut two pieces of glass at the same time, automatically put glass and receive glass.
Features
1、Using the arc swing cutting template, it can ensure that every piece of the cutting is in the same position, with high cutting precision, and cutting at the same time,the cutting scope is large and the cutting speed is fast
2、Computer program and CNC cutting software, computer programming and control cutting dimensions are accurate and stable.
3、The cutting accuracy is high,and the cutting speed will automatically adjust the compensation when the graphic has sharp angle.
4、The software is easy to learn, and the graphics call is easy to modify.
1、Using the arc swing cutting template, it can ensure that every piece of the cutting is in the same position, with high cutting precision, and cutting at the same time,the cutting scope is large and the cutting speed is fast
2、Computer program and CNC cutting software, computer programming and control cutting dimensions are accurate and stable.
3、The cutting accuracy is high,and the cutting speed will automatically adjust the compensation when the graphic has sharp angle.
4、The software is easy to learn, and the graphics call is easy to modify.
5、Under the knife pressure precision control, cutting depth adjustable.
6、High precision ball screw,high speed servo motor and precision pneumatic elements ensure the cutting quality and efficiency
6、High precision ball screw,high speed servo motor and precision pneumatic elements ensure the cutting quality and efficiency
7、High degree of automation,simple operation,complete protection, easy maintenance.
8、The control of electrical,servo motor and pneumatic components all adopt international famous brand the equipment operation is stable and reliable,the failure rate is low.
8、The control of electrical,servo motor and pneumatic components all adopt international famous brand the equipment operation is stable and reliable,the failure rate is low.
Main parameters
1、Control mode:touch screen+PLC+computer+I/O control card +special numerical control software, working parameters are set in the interface,programs can be saved and counting functions.
2、Glass size:310x410mm can be customized
3、Input power: three-phase 380V/3Kw other voltage grade can be customized.
4、Input air source:0.6-0.8MPa.
5、Cutting accuracy:±0.10mm.
3、Input power: three-phase 380V/3Kw other voltage grade can be customized.
4、Input air source:0.6-0.8MPa.
5、Cutting accuracy:±0.10mm.
6、Equipment volume:LxWxH 2500x1200x1800mm
7、Cutting speed:10000-20000mm/min
8、Cutting range: 150x200mm can be customized
7、Cutting speed:10000-20000mm/min
8、Cutting range: 150x200mm can be customized
9、Glass curvature: SR≮800mm.

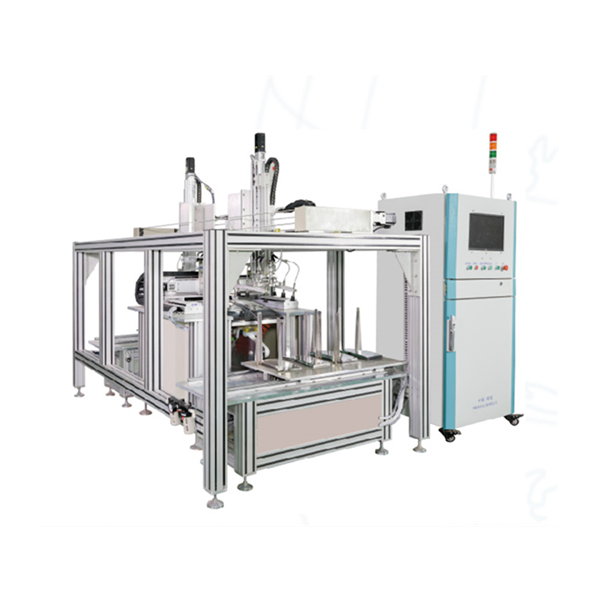

Product Display
Company Profile
Wanhe offers one step solution for the automotive rear view mirror project.Our capabilities include engineering, testing and manufacture of automotive interior and exterior mirrors. We are able to provide our customers various products as rear view mirror、inner view mirror、convex mirror、mirror actuator、mirror heater、car mirror switch、power floder and auto mirror mould.
We supply products to many countries in Asia, South America, and the Middle East.Through our customers, we are proud to supply our products to Volkswagen, GM, Mekra-Lang, BYD, Hainan Mazda and etc. Our factory has certified via ISO TS 16949:2002 since 2008.
We can offer you:
- Full assembly set design
- Moulds for all plastic parts and metal parts.
- Auto mirror glass
- Manual Type Actuator (manual glass adjustment)
- Electric Type Actuator (electric glass adjustment)
- Glass heater
Packing & Delivery
FAQ
Q1：What is the advantage about your company?
A1：We have a professional team,which can well ensure the quality of product and service.
Q2：The size can be customized?
A2：Yes, we can customize according to your needs.
Q3：What can we provide?
A3：We can provide a one-step solution for the automotive rear view mirror project.
Q4：Can I get a sample to check the quality of product?
A4：Yes, we can send you samples to check the quality.
Q5: Whats' your payment terms?
A5: TT，L/C，Paypal，Western Union or others accoridng to specific situation.
